H20 Timber Beam

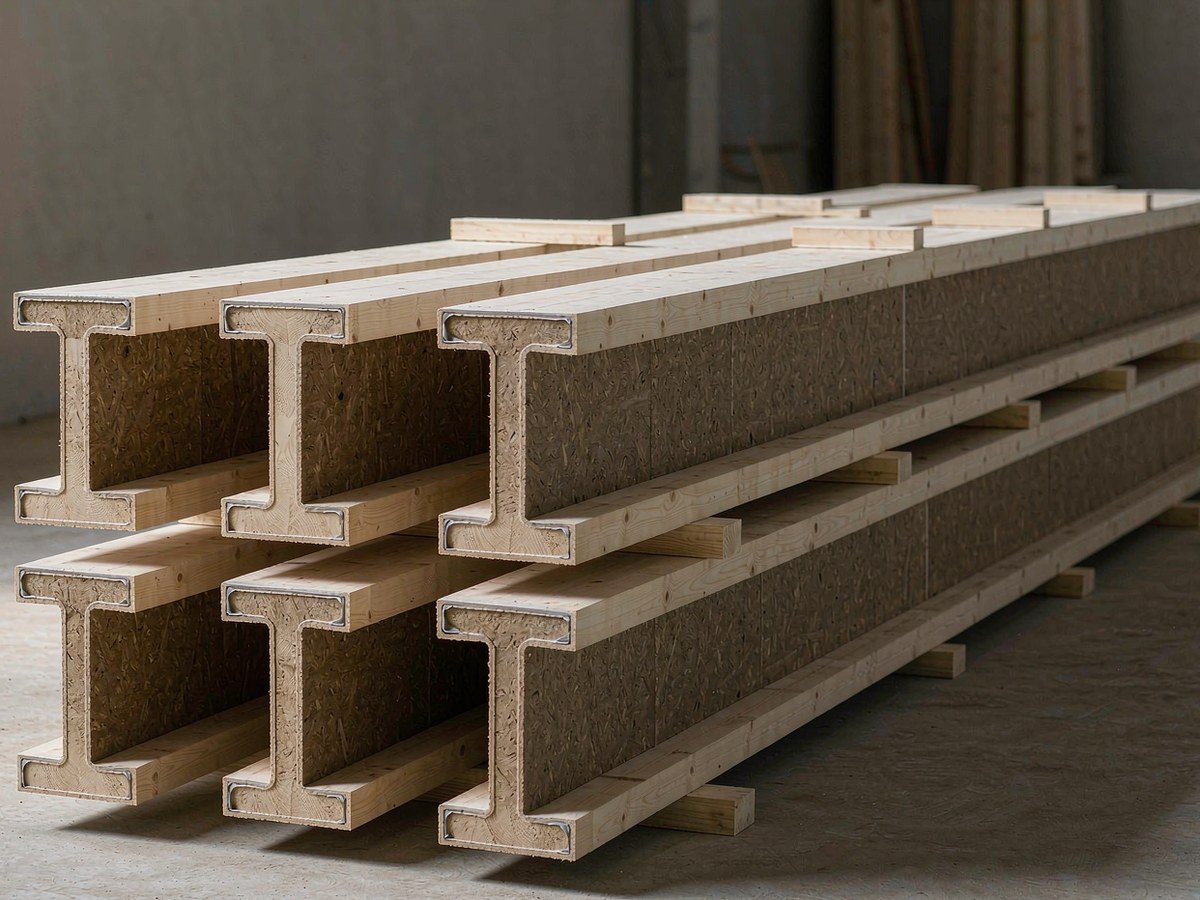

H20 Timber Beam 200 x 80 mm
EN 13377 glued laminated beams compatible with all standard H20 accessories.
- Straight, dimensionally true beams that keep formwork square
- Waterproof melamine glue line
- Fits every standard H20 clamp, waler and accessory
- Sealed ends to protect the beam in storage and transit
H20 beams carry wall and slab formwork systems across Europe, and the tolerances matter: a beam that is not straight throws the whole panel out. Our beams are produced to EN 13377, with a three-ply laminated veneer web, waterproof melamine glue and machine-sealed ends.
They are compatible with standard H20 clamps, walers and formwork tables, and are supplied in the lengths most commonly called for. Custom lengths can be produced on request.
Specification
| Section | 200 x 80 mm |
|---|---|
| Lengths | 2.45 / 2.65 / 2.90 / 3.30 / 3.90 / 4.90 / 5.90 m |
| Timber | Selected spruce / pine, kiln dried |
| Web | 3-ply laminated veneer lumber |
| Glue line | Waterproof melamine |
| Weight | ≈ 4.9 kg per metre |
| Ends | Sealed with protective cap |
| Standard | EN 13377 |
Tolerances and tests to EN 636 / EN 314-2. Tell us your application and we will confirm the closest match — or produce to your own specification.
Key features
- Straight, dimensionally true beams that keep formwork square
- Waterproof melamine glue line
- Fits every standard H20 clamp, waler and accessory
- Sealed ends to protect the beam in storage and transit
